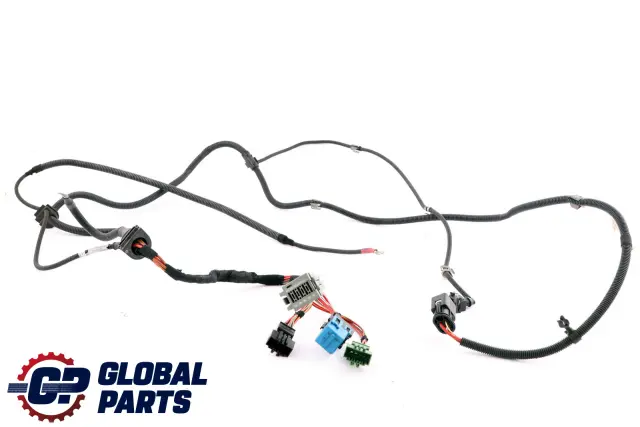

BMW X3 Series E83 LCI Wiring Harness Engine Gearbox Module 3452223

Description

BMW X3 Series E83 LCI Wiring Harness Engine Gearbox Module is an original component from the Wires, harnesses and connectors group, designed for precise connection of the control module to the engine unit equipment. This solution allows for maintaining factory control logic, powertrain stability, and electrical system consistency in the BMW X3 E83 series after the facelift.

Specifications and technical data

• SKU: 3452223
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 3452223
• Substitutable numbers: 12513452223, 3452223
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the powertrain

The offered harness is dedicated to the engine and gearbox area in the BMW X3 E83 LCI, where it is responsible for transmitting signals between the control module, sensors, and actuators. A properly selected harness ensures communication consistency within the powertrain, which translates into stable engine operation, correct gearbox performance, and proper response to sensor signals.

Thanks to the factory fitment for the specific X3 E83 LCI generation, the harness maintains the original cable routing geometry, correct segment lengths, and connector placement, which facilitates installation and minimizes the risk of mechanical stress in the system.

Construction, connectors, and compatibility

The harness belongs to the Wires, harnesses and connectors group, which means it includes a set of electrical wires terminated with factory connectors matched to the engine and gearbox equipment. The connectors used are designed to BMW specifications, allowing for a secure connection to the control module and other system components without the need for modifications.

The original design helps maintain proper circuit resistance, correct insulation, and resistance to typical thermal and vibration loads occurring in the engine compartment. This is particularly important in vehicles where stable communication between the controller, the gearbox, and engine equipment is required.

Condition, installation, and service application

The item comes from dismantling and is offered as a used wiring harness, which is a cost-effective service solution for BMW X3 E83 LCI users looking for original components at a reasonable price. Choosing a harness from the secondary market allows you to maintain the factory installation specification without the need to use replacements with uncertain parameters.

In practice, installation comes down to recreating the factory cable routing and plugging the connectors into the appropriate sockets of the engine module, gearbox, and equipment. Thanks to the preservation of the original design, the harness is ready to work in the existing system without additional software adaptations on the wiring side.

Benefits of using an original BMW harness

• maintaining the factory electrical system architecture in the engine and gearbox area,
• consistency with the control module and other powertrain components,
• reducing the risk of communication errors and signal interference compared to non-original solutions,
• possibility of economical vehicle repair while maintaining a component sourced from BMW.

For workshops specializing in the BMW brand and users servicing their cars themselves, using such a harness is a way to maintain system consistency while reducing costs compared to a new part.
